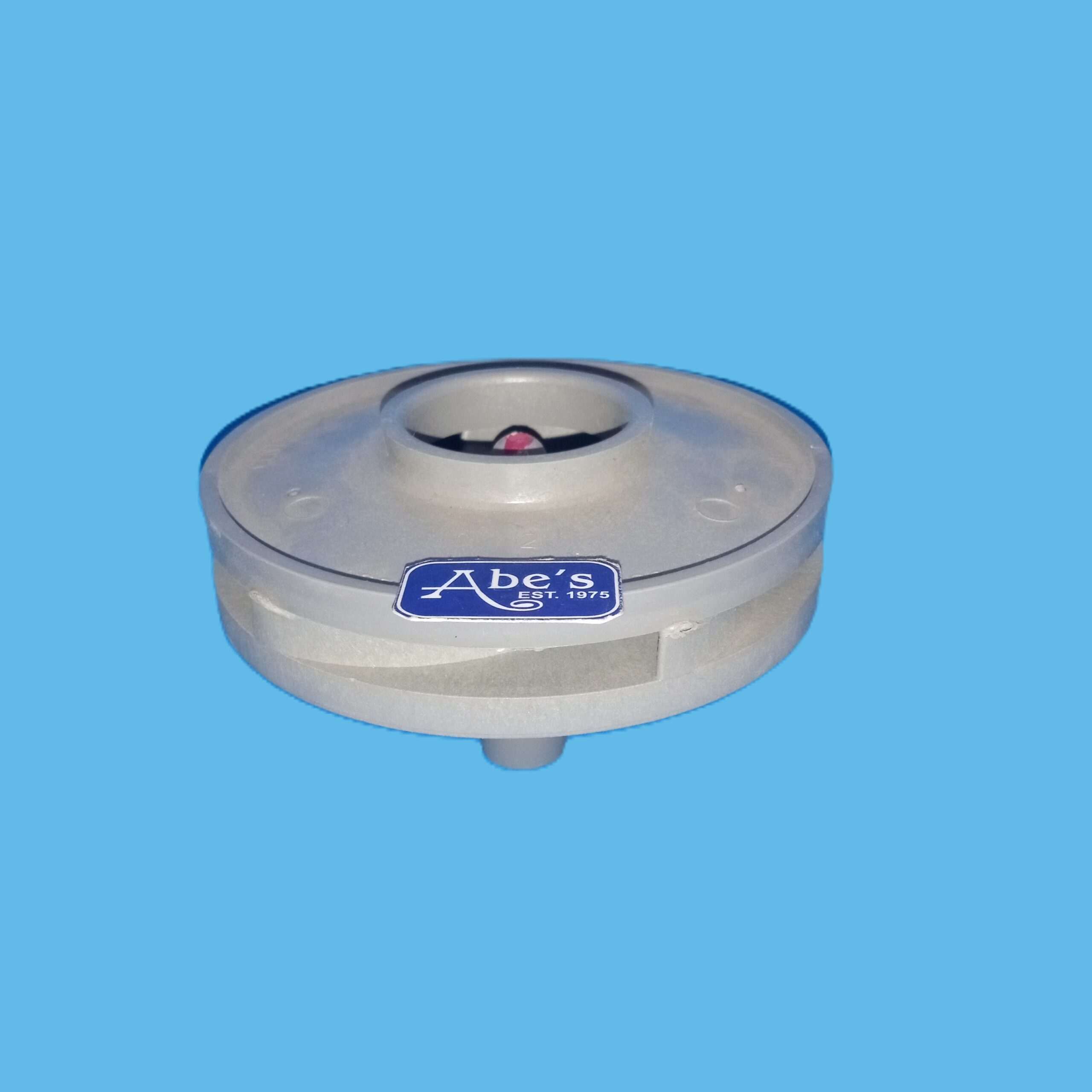

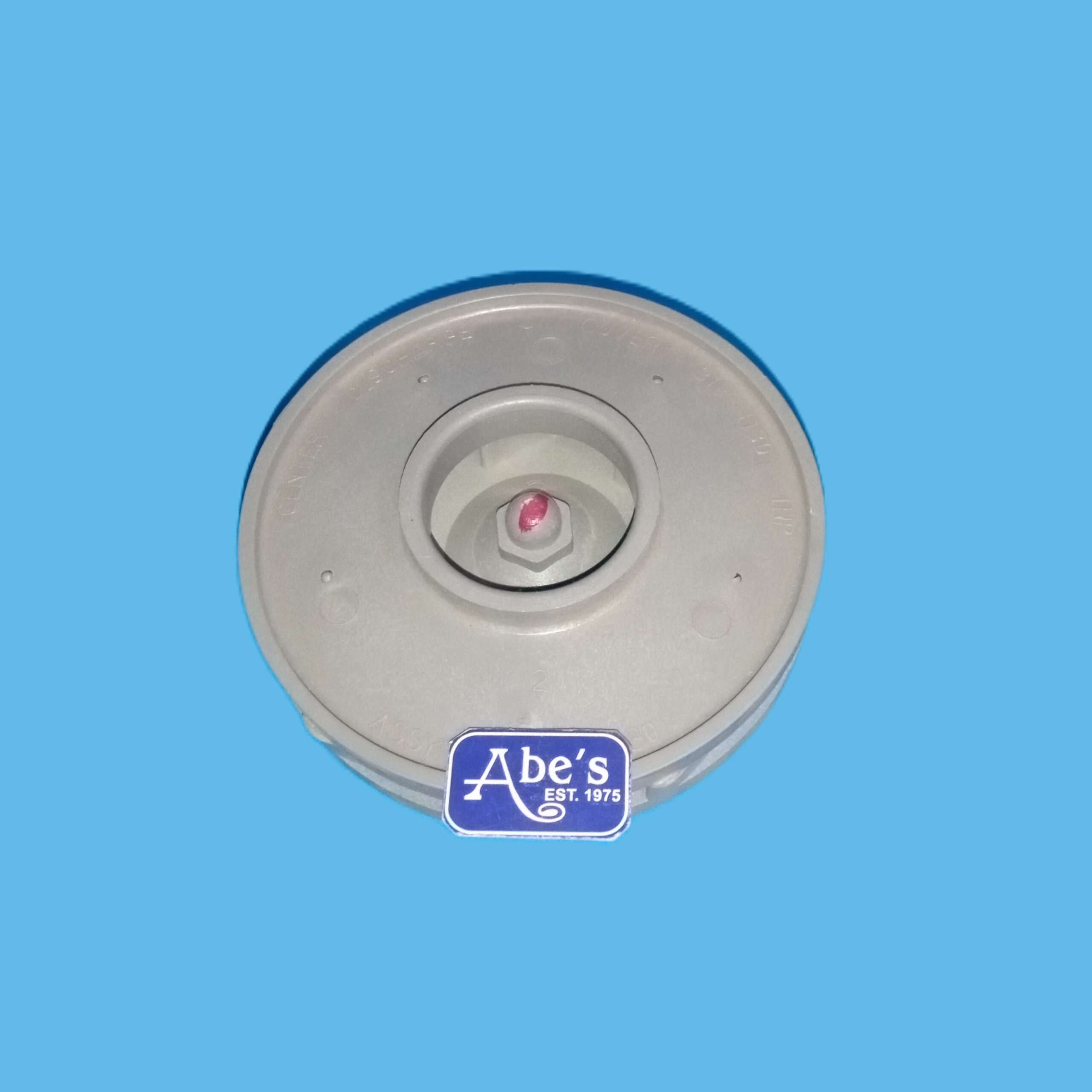

Waterway Impeller 1hp / Center Discharge 310-5130

The Waterway impeller 1hp Center Discharge 310-5130 is designed for use with the Waterway center discharge pumps. Here are some details about this impeller:

• Impeller Type: Closed Face
• Impeller Diameter (OD): Approximately 3-13/16 inches
• Vane Width (ID): About 5/16 inch
• Eye Diameter (OD): Around 1-11/16 inches
• Eye Length: Approximately 1/4 inch
• Impeller Width (OD): Roughly 7/8 inch
• Shaft Length: About 1-1/8 inches
• Shaft Diameter (OD): Approximately 5/8 inch
• Seal Seat Depth: Around 3/8 inch

This impeller is compatible with Waterway center discharge pumps and bath pumps. It’s a closed face gray impeller that fits 1HP motors. The shaft side of the impeller has a ridge extending about 1/4 inch past the face.

Please note that this impeller is no longer in production, but it was commonly used with Waterway pumps. If you need a replacement, consider checking with Abe’s Pools & Spas for availability.
