Description

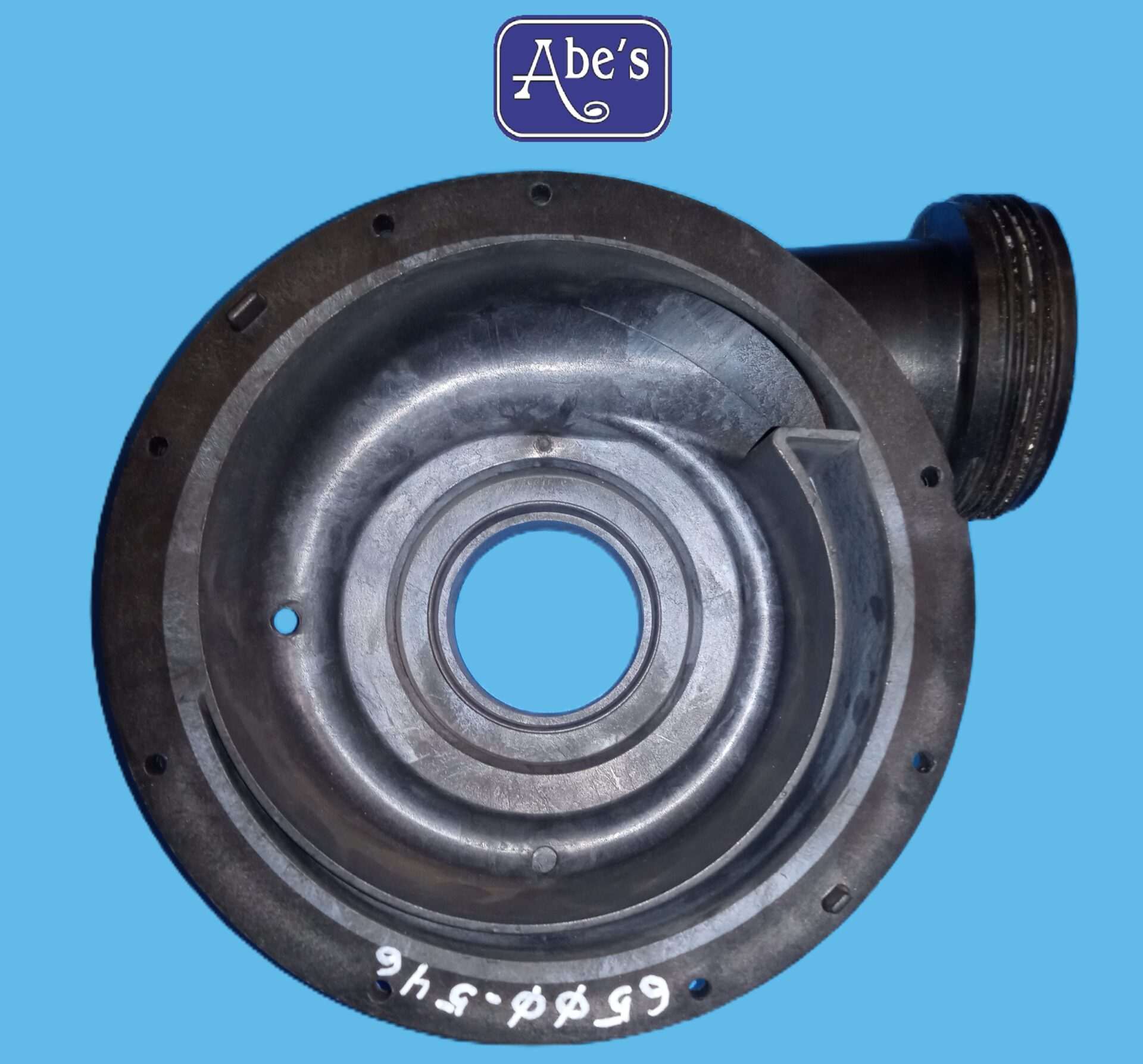

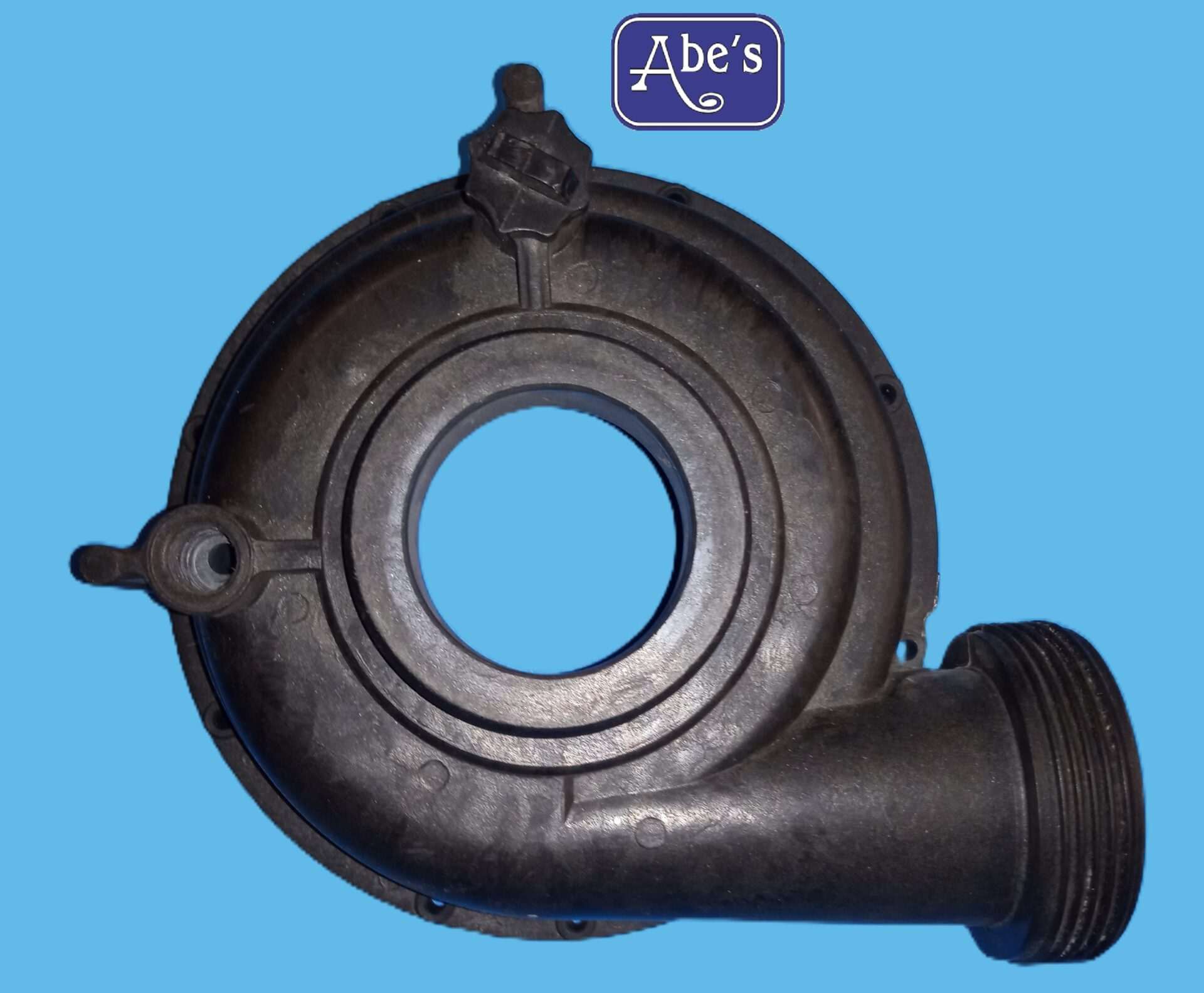

Sundance 6500-546 Front Pump Housing
Experience the ultimate in hot tub technology with the Jacuzzi / Sundance 6500-546 Front Pump Housing. Expertly designed to fit select pumps with an Emerson brand electric motor in specific Jacuzzi and Sundance Spas models, this pump housing is the epitome of efficiency and reliability. Its male threaded connections and easy installation make it a favorite among hot tub owners. Please note that the volute, volute o-ring, screws, and impeller seal are not included. The Sundance 6500-546 Front Pump Housing is the same as the Jacuzzi Jacuzzi 03087203R Front Pump Housing.
The Jacuzzi/Sundance 6500-546 Front Pump Housing has the following specifications:
- It is designed to fit select hot tub pumps with an Emerson brand electric motor in select Jacuzzi and Sundance Spas models.
- It has male threaded connections referenced as 2″ (actual 3″ OD) for suction and discharge connections.
- It includes eight holes for screws to mount the volute to the seal plate, and dual drain plugs.
- The installation is easy with 1/4″ and 1/8″ round alignment tabs located 180° from each other.
- It includes 2 drain plugs with o-rings.
- It does not fit any LX or XP pumps.
- Not included: Volute, Volute o-ring, impeller shaft seal, screws.
This part is compatible with the following pump/motors:
- 6500-341* (48F) replaced by P/N 6500-352 (56F) in Mid 2010 for 780/680 Series.
- 6500-343 (48F) replaced by P/N 6500-367 (56F) in Aug. 2010 for 780/680 Series.
- 6500-351 (48F) replaced by P/N 6500-369 (56F) in early 2012 for 780 Certa.
Please note that this part does not include the volute, volute o-ring, or any screws or impeller seal. You can find the Jacuzzi Front Pump Housing 6500-546 at various suppliers. Please ensure to check the compatibility with your specific model before purchasing.
